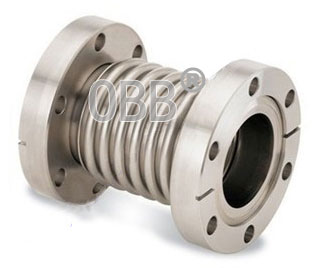

Basic description of CF vacuum bellows
1. For ultra-high vacuum state, the flange can rotate on one side
2. Seal with copper gasket and connect with bolts
3. Temperature range - 196-450 ° C
4. Leak late of helium: below 5x10-10 PA · m3 / S
Material type of CF vacuum bellows
1. CF vacuum flange material: SUS304 or SUS316L
2. Material of vacuum bellows: SUS304 or SUS316L
Main use of CF vacuum bellows
Widely used in aerospace, aviation, metallurgy, petrochemical, shipbuilding, building materials, electric power, thermal power, gas and other industries
